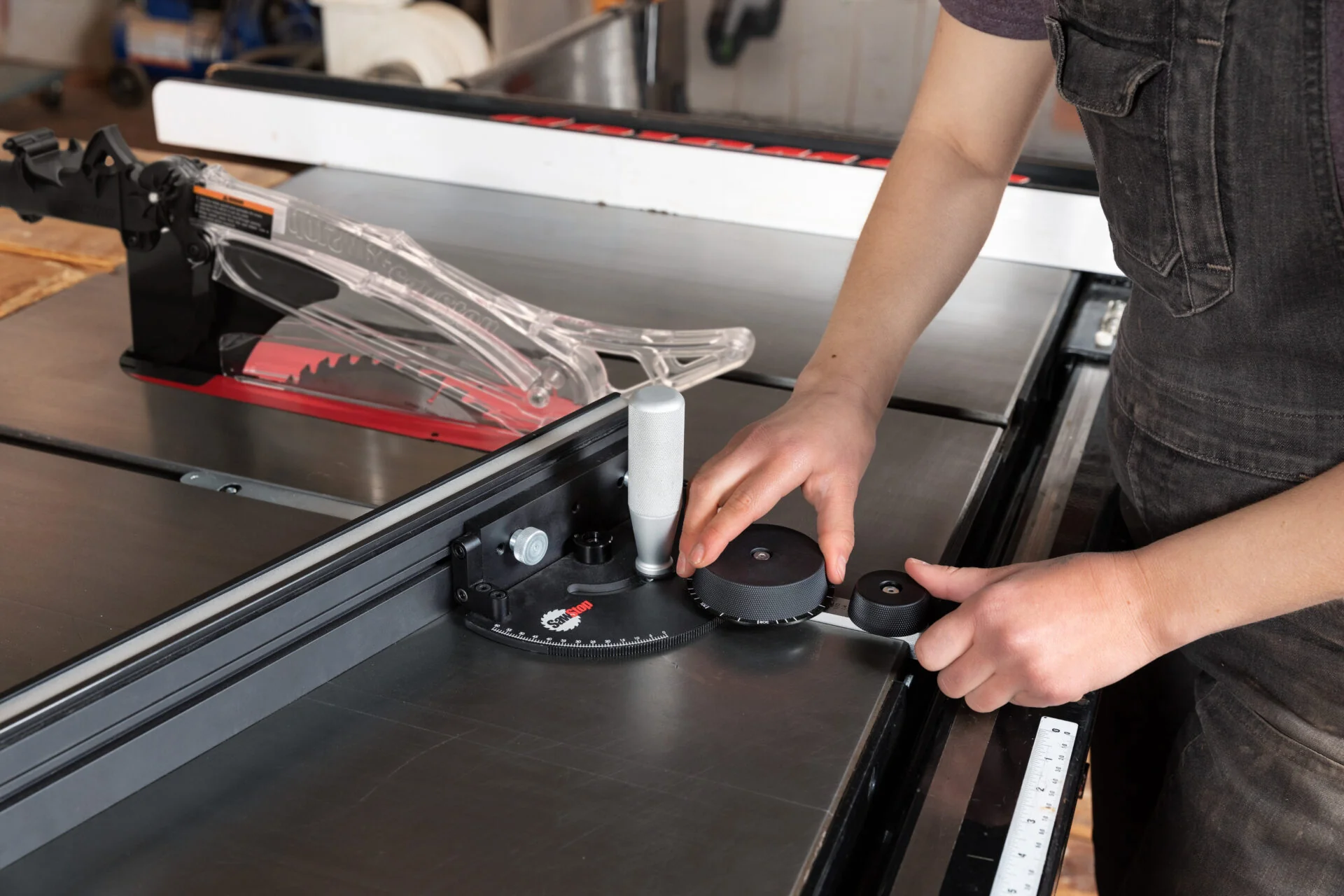

SawStop TSA-RMG Revolution Miter Gauge

Get unmatched precision and accuracy with the spin of a dial. Intuitive, tool-free adjustments provide fine-tuning that is exact, reliable, and repeatable.

• The miter angle dial has pre-set increments of 1°, 1/2°, 1/4°, or 1/10° with tactile feedback so you can feel your desired angle click into place, making angle adjustments reliably accurate - quick and easy.
• Sliding wedge system for fence attachments and repeatable stops.
• Make repeatable cuts up to 37-1/2" in length using the tool-free articulating flip stop - with or without a sacrificial fence. The flip stop includes mounting holes for adding jigs or locking into the wedge system.
• Heavy-duty construction including a steel miter plate manufactured with machine tolerances of <.001” for exceptional precision

Includes

• Miter gauge body and miter bar
• Telescoping fence
• Sliding wedges x6
• Thumbscrews x3
• 2mm hex wrench
• 2.5mm hex wrench
• 3mm hex wrench
• 4mm hex wrench

Specifications

• Miter bar length: 20"
• Weight: 8.4 lbs.
• Angle range: 60° left and right
• Miter slots: T-shaped - 3/4" at top, 1" at bottom, 3/8" deep
• Fence length (retracted): 19-1/2”
• Fence length (fully extended): 37-1/2”
• Fence height: 3"
