Festool 576423 Domino DF 500 Mortise and Tenon Joiner SET
Small quantities remaining of this discontinued version - see new model.
Joining has always been a slow, difficult process. Never again, thanks to the Festool Domino joining system. The system consists of the Domino joiner and pre-fabricated, beech and sipo Domino tenons. The Domino joiner, with its revolutionary cutting method, simple indexing features and adjustable mortise sizing, makes flawless mortises every single time. The Domino tenon is equally as impressive - it is 100% rotation-proof and far stronger than either biscuits or dowels. It also has a large gluing surface area for extra strength.
- Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time.
- Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.
- Indexing pins for quick alignment against the edge of the workpiece for accurate placement.
Includes
- DOMINO Cutter D5
- Cross Stop
- Trim Stop
- Support Bracket
- Wrench
- Plug-it Power Cord
- All packed in SysGen3 M187 Systainer
Specifications
- Cutter spindle speed: 24,300 rpm
- Domino slot cutter diameter: 5 mm cutter included / 4, 6, 8, 10 mm cutters sold separately
- Miter routing: 0-90 degree; stop positions at 0, 22.5, 45, 67.5, & 90 degrees
- Movable stepped stop: (16/20/22/25/28/36/40 mm)
- Power consumption: 420 watt
- Routing depth stop: (12/15/20/25/28 mm)
- Routing height adjuster with scale: (5-30 mm)
- Weight: 7 lbs (3.2 kg)
Features & Benefits
Patented Routing Principle
The spiral cutter rotates and oscillates to create perfect mortises.
Mortise Width Adjustment
Adjusting the width of the mortise allows for easier alignment when joining panels.
Positioning

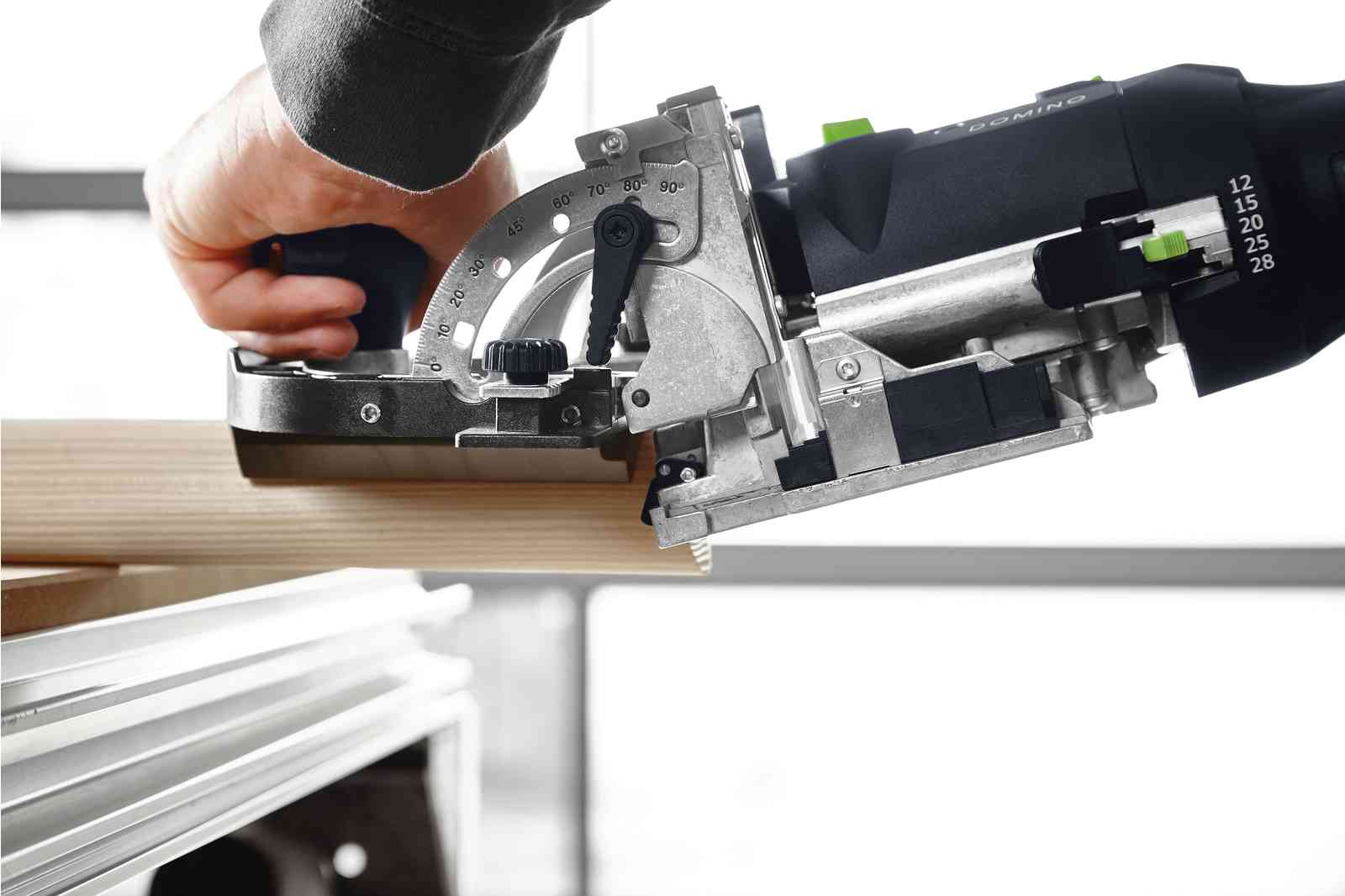

With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the Domino joiner enables precise mortise placement and spacing.
Pivoting Fence
Fence creates angled mortises from 0-90 degrees with positive stops at 22.5, 45, & 67.5 degrees.
Depth Control
Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application.
Stepped Height Stop
7 different step positions for different material thicknesses for fast and easy fence height adjustment.
Dust Extraction
Your mortises are clean and ready for glue when the Domino is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life.
Carbide Tip Spiral Bit
Durable, long-lasting bit withstands 5,000-14,000 joints depending on material.
Rapid Bit Change
Means you can change a bit in under 30 seconds to match desired tenon size.
